Professional PCB Production Manufacturer in Shenzhen.
7 Years
| Ask Lasest Price | |
| Brand Name : | OEM PCB |
| Model Number : | Customized |
| Certification : | ISO9001/ISO14001 |
| Price : | negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 10,000 sq meter per month |
| Delivery Time : | 5-14 days |
We can support your research and development efforts and meet your fast life cycles.We have set a separated department where the exclusive production planner will follow your orders production to meet the requirements of Rapid Prototyping and Quick Turn PCB.

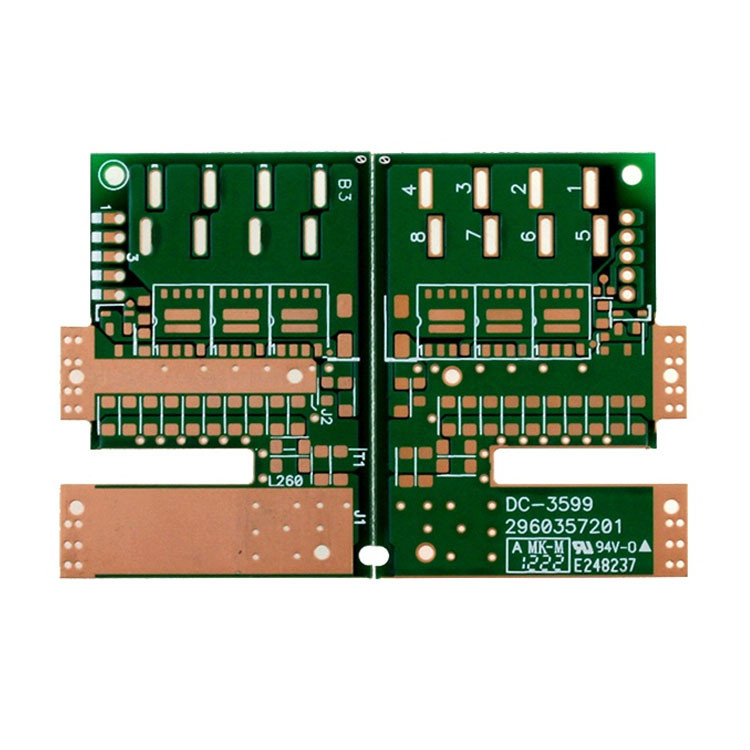

Product show
Specification
| OEM/ODM Services: | |||
| Layers | 1-32 layers | Min. line width | 2mil |
Max.board size (single&doule sided) | 700*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish | HAL(with Pb free),plated Ni/Au, Immersion silver,Imm Ni/Au,Imm Sn, hard gold,OSP,ect | Min.board thickness(multilayer) | 4layers:0.4mm; 6layers:0.6mm; 8layers:1mm; 10layers:1.2mm |
| Board materials | FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); thick copper | Plating thickness (Technique: Immersion Ni/Au) | Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% | Distance between line to board edge | Outline: 0.2mm V-CUT: 0.4mm |
Base copper thickness(Inner and outer layer) | Min. thickness:1/3 OZ Max.thickness:6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers: Min.thickness 1 OZ, Max.thickness 10 OZ Inner layers: Min.thickness 0.5OZ, Max.thickness 6 OZ | Max.board thickness(single&doule sided) | 6mm |
FAQ
Q1: What service do you have?
FanyPCB: We provide turnkey solution including RD, PCB fabrication,
SMT, final assembly,testing and other value-added service.
Q2: What are the main products of your PCB/PCBA services?
FanyPCB: Our PCB/PCBA services are mainly for the industries
including Medical, Automotive, Energy, Metering/Measurements,
Consumer Electronics.
Q3: Can we inspect quality during production?
FanyPCB: Yes, we are open and transparent on each production
process with nothing to hide. We welcome customer inspect our
production process and check in house.
Q4: How can we ensure our information should not let third party to
see our design?
FanyPCB: We are willing to sign NDA effect by customer side local
law and promising to keep customers data in high confidential
level.
|
|
